Pneuvay Iris Vortex Valve


The Patented Vortex ® Iris Valve TM is designed specifically to handle dry bulk solids in gravity discharge of free flowing material from bins, bulk bags, chutes and hoppers and caters to the following key industries:

  • Agriculture
  • Chemicals
  • Foods
  • Minerals
  • Petrochemicals
  • Plastics
  • Textiles

Visit Main Page to learn of the variety of materials
handled by Vortex Valve.

The Iris Valve is designed with stainless steel control rings, metal handle and trigger lock and nylon shim for durability and smooth actuation.

The Iris Valve is designed with stainless steel control rings, metal handle
and trigger lock and nylon shim for durability and smooth actuation.



Pneumatic Conveying Advantages
of the Iris Vortex Valve


The Iris Valve™ is designed to eliminate problems and increase production while decreasing labour and equipment costs. It is designed with stainless steel control rings, metal handle and trigger lock and nylon shim for durability and smooth actuation while its form fitted fabric sleeve provides a dust tight seal and product barrier, which prevents material leakage into the atmosphere.


Pneumatic Conveying Benefits
of the Iris Vortex Valve


Aside from the numerous advantages that Iris Valve brings to industry, it is also applauded because of the following benefits:

  • Durable lightweight aluminum construction
  • Easy and inexpensive sleeve replacement
  • Ideal for handling friable materials
  • Double sleeves for fine dusty materials

Pneumatic Conveying Features
of the Iris Vortex Valve

  • No binding or galling for smooth actuation
  • Unobstructed bore for unrestricted flow of material
  • Fabric sleeve prevents material degradation
  • Stainless steel control ring

Iris Vortex Valve
Quick Lock Model Table


This table shows the dimensions in mm and weight in kilograms of the different Iris Vortex Valve Quick Lock Model such as:

  • UB100QL
  • UB150QL
  • UB200QL
  • UB300QL
  • UB375QL
  • UB450QL

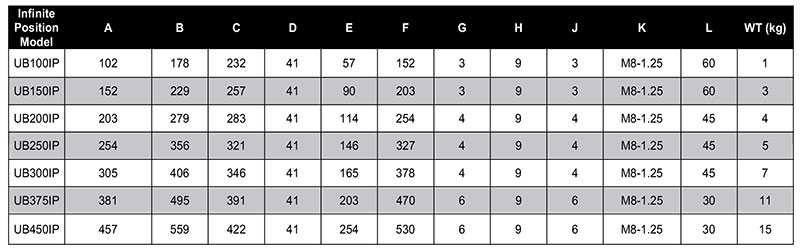

Iris Vortex Valve
Infinite Position Model


This table shows the dimensions in millimeters (mm) and
weight in kilograms (kgs) of the different Iris Vortex Valve Infinite Position Model such as:

  • UB100IP
  • UB150IP
  • UB200IP
  • UB250IP
  • UB300IP
  • UB375IP
  • UB450IP

Note: Refer to Pneuvay Iris Vortex Valves PDF for complete specification of the product.
