INTRINSIC PROPERTIES TO PREVENT BLOCKAGES AND MINIMISE WEAR WHEN DESIGNING INDUSTRIAL VACUUM SYSTEMS

An industrial vacuum system design must consider several intrinsic factors to prevent blockages and minimise pipe wear during operation. These technical variables determine the overall efficiency and lifespan of a central vacuum power unit. Accurate calculations ensure the system can handle specific materials without causing damage to the internal pipework. Key design considerations include:

The success of an industrial vacuum system depends on the physical interaction between air speed and the properties of the material being conveyed. The design should account for these intrinsic variables to ensure that the material remains suspended throughout the entire transport run to minimise pipe wear.

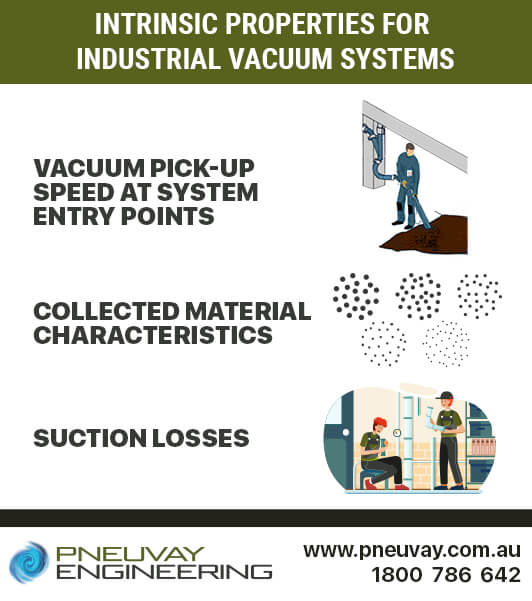

Intrinsic properties for industrial vacuum systems

Vacuum pick-up speed at system entry points

Most dry granular materials require a transport velocity between 15 and 20 metres per second to remain suspended in the airstream. Speed below this range can cause material to drop out of suspension, eventually leading to system blockages. Excessively high speeds above 20 metres per second can result in rapid pipe abrasion, particularly in branches, elbows and other high-impact zones.

Material speeds requirements for industrial vacuuming table

Collected material characteristics

The physical properties of the collected material significantly influence the overall design of the industrial vacuum system and its components. The design must consider specific variables to select the most durable materials for the piping network. These critical factors include particle size, material weight, moisture content and the abrasiveness of the material.

Material properties, design impacts, and engineering requirements table

Example comparison of abrasive iron ore to sticky food products

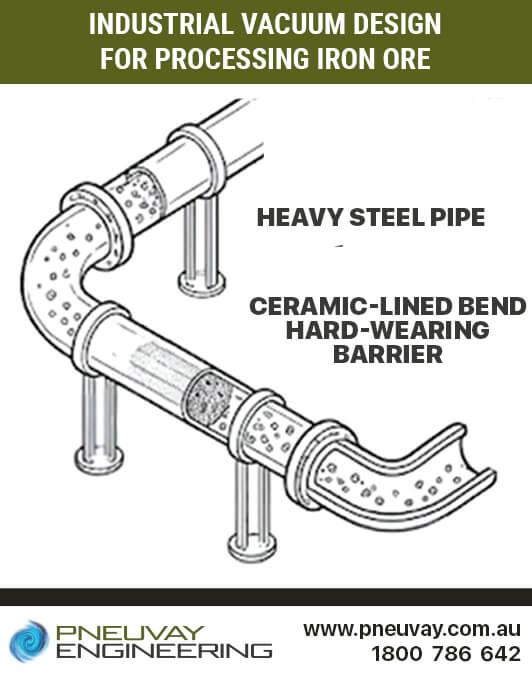

A mining processing plant in Western Australia handles iron ore dust that acts like sandpaper against the inside of pipes. An industrial vacuum system designed for this environment would use heavy steel pipes and ceramic-lined bends that provide a hard-wearing barrier against constant abrasion. These heavy-duty components are well suited to transporting iron ore dust but would be unnecessary and inappropriate in a food processing environment.

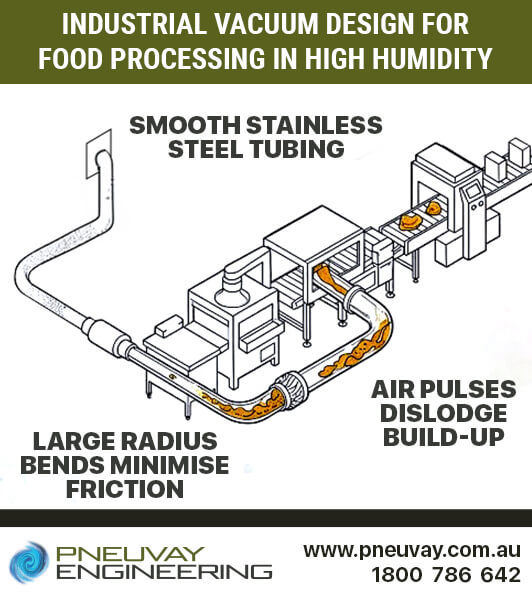

A commercial confectionery factory faces a different challenge. When moving sugar-based powders, it behaves like warm honey in humid conditions. The design would address this sticking issue by using smooth stainless steel tubing to minimise friction during transport and by incorporating air pulses to dislodge material build-up.

Understanding these unique material characteristics being vacuumed helps minimise component replacement and reduces the risk of jams or blockages during operation.

Comparing of abrasive iron ore to sticky food products when designing industrial vacuum

Suction losses

Accurate power selection requires a precise estimation of suction losses across the hoses, tools, and straight piping runs. Total suction loss includes the internal resistance found within separator containers and the friction generated as material moves through the tubing. Friction losses at 45-degree and 90-degree elbows are significantly higher than the resistance found in straight sections of the same diameter. A single 75 mm elbow can create a pressure drop equivalent to 3.7 metres of straight tubing within a standard industrial configuration.

Equivalent straight pipe length of common industrial vacuum piping components table

Example comparison for system resistance to power selection

A regional grain terminal requires an industrial vacuum system to transport heavy wheat over a total distance of 60 metres. The design must account for the suction loss at every bend to ensure the power unit can overcome internal air resistance.

A layout with 10 sharp 90-degree elbows adds the equivalent resistance of 37 extra metres of straight pipe to the system. This significant increase in suction loss will require a more powerful motor that will greatly increase power consumption. The design can mitigate this by replacing sharp turns with gentle 45-degree bends to maintain sufficient air speed to carry the material.

Correct calculation and allowance for suction losses ensure that the furthest inlet in the facility still has sufficient suction to pick up heavy debris.

Further information on industrial vacuum system design

Every industrial vacuum system requires a tailored design to suit specific materials, processes and site conditions. Learn the best practices for achieving reliable and efficient performance by reading up on Industrial vacuum system design guide and best practices.

Structural obstacles and site layouts play a major role in vacuum system effectiveness. Explore the factors that should guide installation decisions by reading on Structure and layout considerations when fitting vacuum systems to industrial settings.
