Every industrial setting presents unique site constraints and physical obstacles that directly influence vacuum system performance. An expert layout addresses these structural variations to ensure the final installation provides adequate suction, maintains efficient material transport, and minimises costly blockages that could disrupt production. This requires careful planning around three interconnected pillars:
Professional layouts must balance installation costs with long-term operational efficiency, using the shortest possible hose and pipe runs to keep workspaces unobstructed. Early consideration of these structural layout variables is the only way to ensure maximum system protection, a low total cost of ownership, and sustained suction performance.

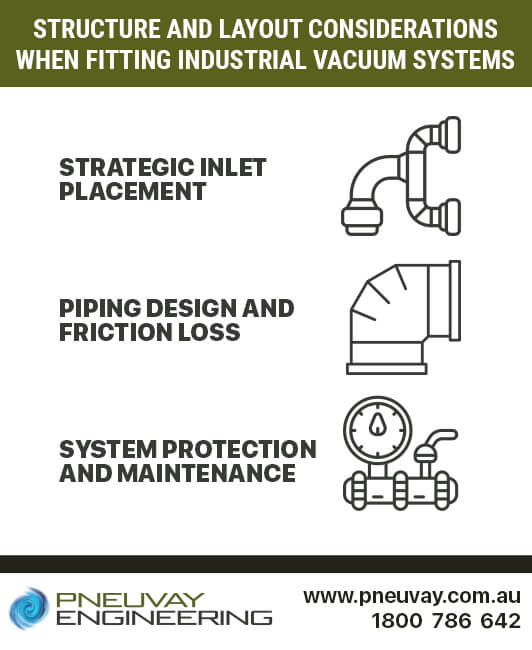

Structure and layout considerations when fitting vacuum systems to industrial settings
Inlets should be located in accessible areas to provide approximately twenty percent overlap in cleaning coverage for maximum efficiency across the floor. A 6-metre hose requires inlets spaced 9-metres apart, while a 9-metre hose allows for wider spacing of approximately 14-metres. Obstructions such as machinery, walls and stairs must be considered when determining the final position of each wall valve or floor inlet.
| Hose length | Suitable inlet spacing | Cleaning radius coverage |
| 6 metres | 9 metres | Standard 20% overlap |
| 9 metres | 14 metres | Extended 20% overlap |
Inlet spacing by hose length comparison for industrial settings table

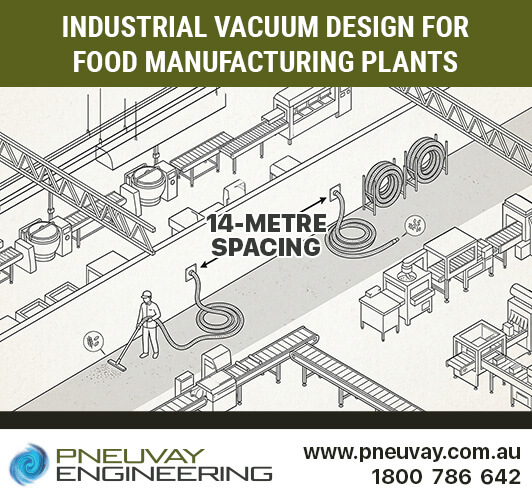

Commercial food manufacturing plants often feature wide production bays that allow for an extended 14-metre spacing between vacuum ports. The design would use longer hoses in these areas to cover large floor spaces while keeping the total number of wall valves to a minimum.

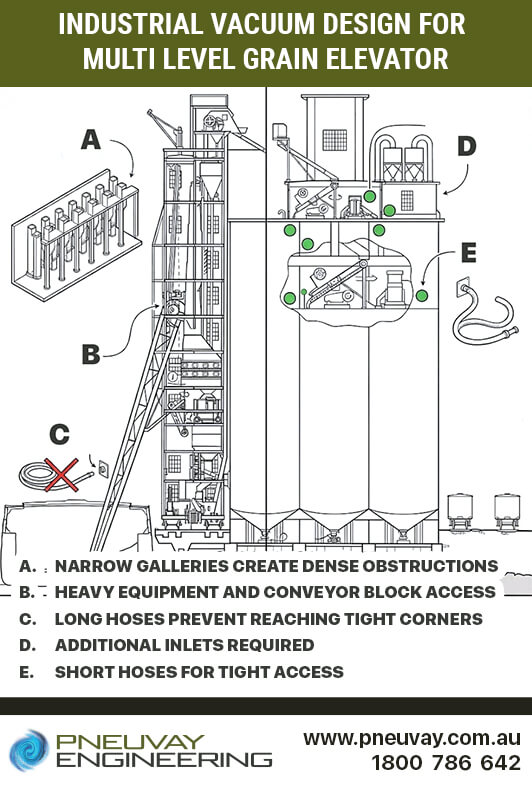

In contrast, a multi-level grain elevator presents a different challenge for industrial vacuum design. Its narrow galleries, vertical chutes and heavy conveyor systems create dense obstructions that prevent long hoses from reaching tight corners or areas behind structural supports within the industrial setting. As a result, additional inlets are required in these complex layouts to ensure that no debris accumulates in hard-to-reach areas during the cleaning cycle.
Comparison of food plants to grain elevators when fitting an industrial vacuum systems
Efficient piping design enhances overall efficiency, minimises friction losses, and lowers your total installation costs. System designers prefer gentle 45-degree bends instead of sharp 90-degree turns to help maintain critical air velocities between 10 and 30 metres per second. Protective additions, including automatic pressure relief valves and accessible clean-out ports, ultimately safeguard your entire piping network from disruptive material blockages.
| Fitting type | Pressure loss impact | Equivalent straight pipe length |
| 45-Degree elbow | Low resistance | 1.5 to 2.1 metres |
| 90-Degree elbow | High resistance | 3.0 to 3.7 metres |
Equivalent pipe length comparison for fittings table
A chemical processing plant needs to transport fine powder over a 50-metre distance to the main collection silo. The design uses three 45-degree bends instead of sharp 90-degree turns to keep overall system resistance low. This layout helps maintain air velocity above 20 metres per second without requiring a larger and more expensive motor for the power source. Selecting smoother pipe paths also prevents fine powder from settling in the system and causing costly production shutdowns. Pipe sizing is set to allow the desired multiple operators to clean different zones simultaneously without losing suction at the furthest inlet.
Piping layouts must minimise the risk of material accumulation or blockages that could disrupt production or operation. Some installations require an automatic pressure relief valve at the furthest point in the system to maintain adequate air speed when only one inlet is active. Large-scale systems should also incorporate accessible clean-out ports to enable maintenance personnel to quickly remove any accidental debris from the pipework.
| Component | Primary function | Maintenance benefit |
| Pressure release valve | Maintains minimum air velocity | Prevents material from settling in pipes |
| Clean-out ports | Provides physical pipe access | Allows quick removal of accidental blockages |
Maintenance requirements for vacuum system components table
An efficient industrial vacuum layout navigates your facility's unique architectural constraints to ensure maximum floor coverage. Strategic inlet placement is key to achieving this, with standard designs aiming for a 20% cleaning overlap. While wide, unobstructed areas allow facilities to safely use longer hoses and extended inlet spacing, complex environments containing dense machinery, stairs, or structural walls demand tighter configurations. These restricted spaces require additional inlets so operators can easily reach tight corners and prevent debris accumulation.
A professionally designed layout addresses these physical challenges while delivering major operational benefits, including:
Every industrial setting presents distinct material characteristics and site constraints. Thus, a tailored engineering approach is the only way to achieve the optimal layout balance for your installation..
Effective vacuum system design reduces wear, prevents blockages, and supports long-term operational success. Read our Industrial vacuum system design guide and best practices.
Effective vacuum system design relies on accurate calculations and careful material assessment. Learn how these factors minimise wear and prevent operational disruptions by reading on Structure and layout considerations when fitting to various industrial settings.
Successful industrial vacuum system design always begins with a detailed look at your specific structural layout and piping needs. For more than 30 years, Pneuvay has provided expert layout and installation assistance to the Australian industry.
Contact us today to ensure your inlet spacing and piping configurations perfectly match your exact site constraints. Feel free to call on 1300721458 or contact us. You can send us a message via our LinkedIn.
